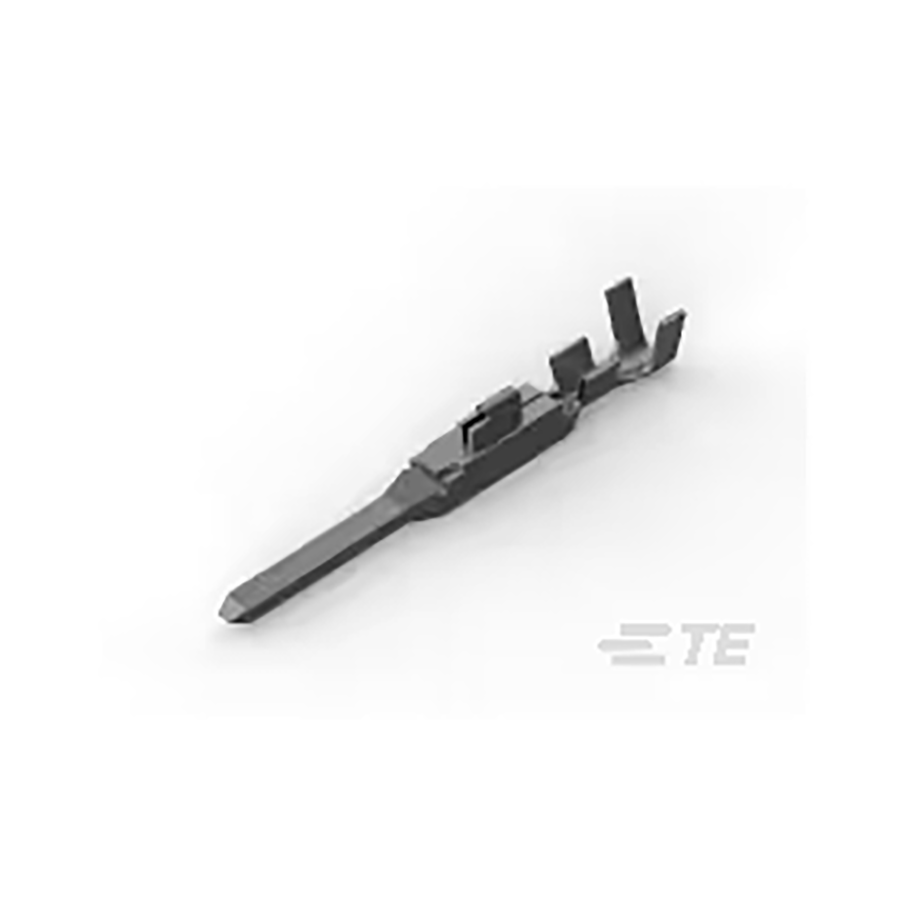

175149-2
Manufacturer:
TE Connectivity
Mfr.Part #:
175149-2
Datasheet:
Description:
Power Connectors Cable Current Rating:12 A Voltage Rating:600 V Tab Male
| Parameter | Value |
|---|---|
| Length | 21.45 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Current Rating | 12 A |
| Max Current Rating | 12 A |
| Orientation | Straight |
| Operating Supply Voltage | 50 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Tab (Male) |
| Shielding | Unshielded |
| Number of Contacts | |
| ELV | Compliant |
| Connector Type | Tab |
| Wire/Cable Gauge | 26 AWG to 22 AWG |
| Number of Positions | |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 12 A |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 22 AWG |
| Insulation Diameter | 2.0066 mm |
| Plating Thickness | 800 nm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| IP Rating(Ingress Protection) | |
| Termination Style | Crimp |
Stock: 544
Distributors
pcbx
pcbxUnit Price$0.06202
Ext.Price$0.06202
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06202 | $0.06202 |
| 10 | $0.03101 | $0.31010 |
| 50 | $0.02856 | $1.42800 |
| 100 | $0.02630 | $2.63000 |
| 500 | $0.02422 | $12.11000 |
| 1000 | $0.02230 | $22.30000 |
| 3000 | $0.02054 | $61.62000 |
| 5000 | $0.01891 | $94.55000 |
| 10000 | $0.01705 | $170.50000 |
